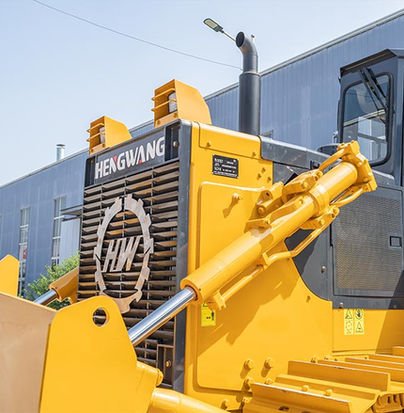

Hengwang HW26D/HW26DE is a medium-duty bulldozer designed for earthmoving, mining and land clearing. It has a 206 kW engine, an operating weight of approximately 23.5–24.2 tons and a bucket volume of 6.8–7 m³.

Main Features (HW26D/HW26DE)

Engine Model: WEICHAI WP12G280E304

Rated power: 206 kW (approx. 276–280 HP) @ 1900 rpm

Operating weight: 23,450 kg (HW26D) - 27,200 kg (HW26DE)

Blade capacity: 6.8 m³ - 7 m³

Overall Dimensions: 6800x3725x3402 mm (HW26D)

Boat weight: 3239 kg

Curb weight: 2560 kg – 2624 kg

Maximum digging depth: 666 mm – 695 mm

Hydraulic oil tank capacity: 110 l

Track section: Balanced frame suspension for improved stability and shock reduction on uneven terrain.

Cabin: Designed with noise reduction, air conditioning, and ergonomic, shock-absorbing seats.

Applications: Suitable for large-scale earthworks, land clearing, road construction and mining.

The HW 26 model is manufactured for two types of operating conditions. (For working in swampy and normal soil areas)
